Elite Series
EL2001-60

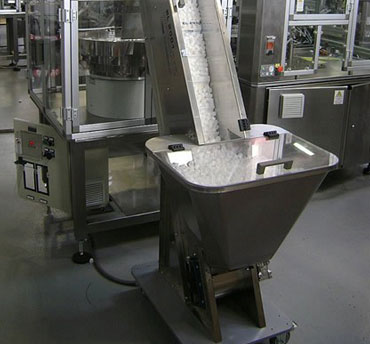

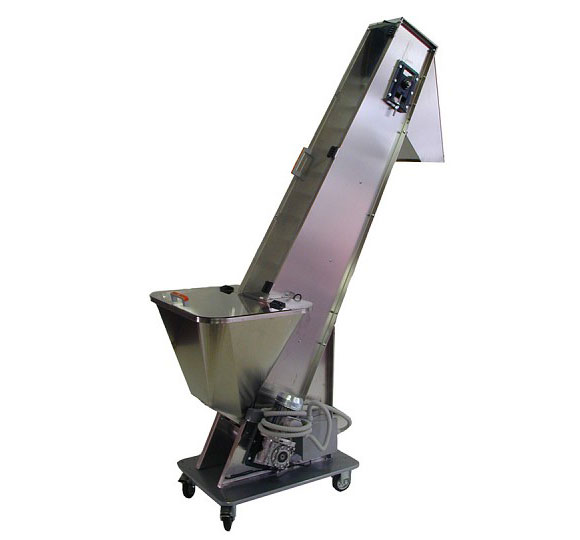

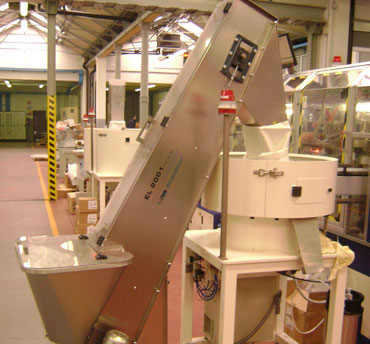

EL2001-60 Part Elevator
| Bowl Capacity | 2.1 Cubic Feet | 60 Liters |
| Hopper Load Height | 35.43" | 900mm |
| Discharge Height | 61.81" | 1570mm |
| Overall Width | 25.2" | 640mm |
| Overall Height | 85.83" | 2180mm |
| Cleat Height | 0.78" | 20mm |
| Belt Height | 7.205" | 183mm |
| Weight | 198lbs |
| Motor Voltage | 230/460vac | 3 phase |
| Motor Size | 1/4 hp |
| Feed Rate | 70mm/sec | 2.75/sec |
Download 3D cad drawingFeatures
The EL2001 is composed of the following parts:
- Stainless Steel hopper bowl with hinged polycarbonate cover and quick change part access panel below.
- Stainless steel vertical channel for belt, provided with a hinged polycarbonate cover to keep parts clean.
- Non-scratch Stainless Steel support frame, painted gray, with four caster wheels.
- Safety proximity switch to stop the conveyor when the hopper cover is opened.
Optional Equipment:
- Proximity switch on clear polycarbonate cover of vertical channel.
- Fiber optic sensor to detect low part levels.
- Pneumatic strut opener on hopper cover.
- Safety proximity switch on the back clean out panel.
